Gammex?RMI 100A100校準模體用于固定和可移動對準產品的校準對準。它用于這些產品的設置和持續質量保證計劃。

一旦設置了模體，就可以測試外部激光器，CT單元激光器和臺面移動的對準精度。

Gammex?RMI 100A100校準模體功能：

• 用于執行水平，垂直和矢狀激光對準的多個凹入對準標記
• 對準可移動和固定的激光器或?qū)?zhǔn)產品
• 包括對準孔，內置的氣泡水平和可調腳，用于在臺上調平單元

GAMMEX?RMI?CT-SIM校驗?zāi)ｓw結合Gammex?CT-Sim?激光系統，用于激光的設立及產品質量檢測。A100/PH-2134特點是在水平、垂直及多倍的凹槽對準及矢狀面激光對準。

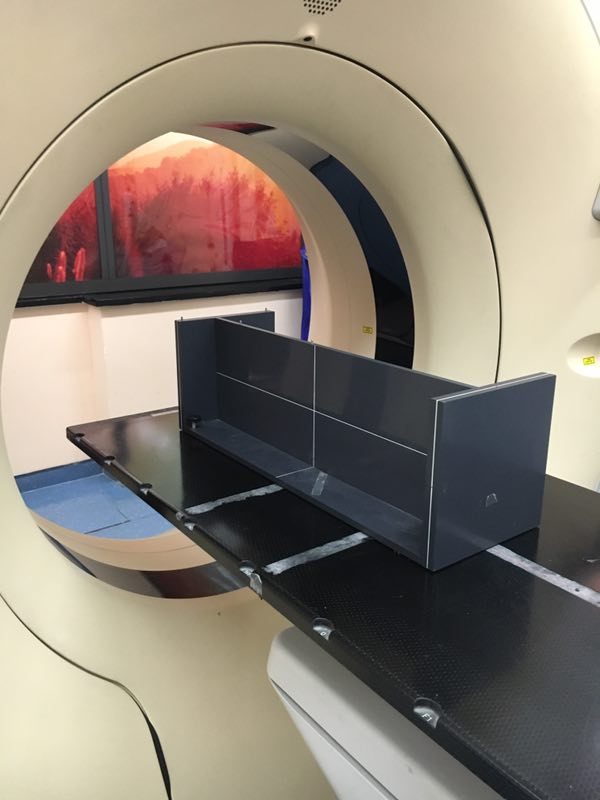

GAMMEX RMI 100A100模體是一個60厘米長，成20厘米寬，成20厘米厚的，帶刻度的模體，平時用來校準激光線的走位是否準直.

美國Gammex模體100A100可用于移動及固定激光線的CT?設備的對準。100A100的設計可適用于洞孔、氣泡水平及設備水平的調整。Gammex的CT-Sim校驗?zāi)ｓw的安裝快速、簡單。一旦模體安裝完畢，不但外部的Gammex激光的精度可以測試到，而且CT設備的激光的準確性及臺面的移動可以確定下來。?

?

?

A1000/HP-2134?Gammex RMI校準模體參數

規格：58.4*20*20 cm

重量：5.3kg

材料：PVC









The Gammex RMI CT-Sim Calibration Phantom 100A100 is used in conjunction with the Gammex CT-Sim laser system in the set-up and continuing QA of the lasers. The 100A100 features multiple re c e s s e d alignment marks for perf o rming horizontal, vertical and sagittal laser alignment. It can be used for aligning both movable and fixed lasers in a CT suite. The 100A100 is designed with alignment holes, a built-in bubble level and adjustable feet for leveling the unit on any table. These f e a t u res make The CT-Sim Calibration Phantom quick and easy to set up. Set-up is achieved using the CT scanner for absolute positioning accuracy. Once the phantom is set up, not only can the external Gammex lasers be tested for accuracy, but the CT unit laser accuracy and table movement can be determ i n e d .
