      碳化硅半導體是新一代寬禁帶半導體，它具有熱導率高，與GaN晶格失配小等優勢，非常適合用作發光二極管，大功率電力電子材料。

      采用碳化硅作襯底的LED器件亮度更高、能耗更低、壽命更長、單位芯片面積更小，且在大功率LED方面具有非常大的優勢。此外，碳化硅除了用作LED襯底，它還可以制造高耐壓、大功率電力電子器件如肖特基二極管（SBD/JBS）、絕緣柵雙極型晶體管（IGBT）,晶閘管（GTO）、金屬氧化物半導體場效應晶體管（MOSFET）等，用于智能電網、太陽能并網、電動汽車等行業。

      從整體上看，碳化硅半導體完整產業鏈包括：碳化硅原料-晶錠-襯底-外延-芯片-器件-模塊。

      我們公司進口碳化硅晶圓，為我們的客戶提供所需的材料，讓客戶在這樣行業里促進技術的快速擴展。

       產品介紹：

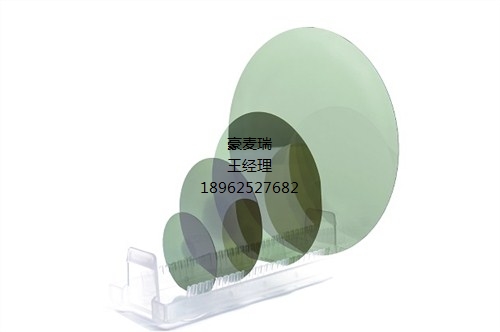

      n-type SiC Substrate



      PRODUCT DESCRIPTIONS



      The Materials Business Unit produces a wide assortment of n-type conductive SiC products ranging in wafer diameters up to 150mm. This material is manufactured upon a high-volume platform process that provides our customers the highest degree of material quality, supply assurance and economies of scale.

      Part Number

      Description

      W4NRF0X-0200



      4H-SiC, n-type, Research Grade, 100mm, On-Axis, 0.013-2.0 ohm-cm, Standard MPD, 500um Thick, DoubleSided Polish Si Face CMP Epi Ready, Bare Substrate

      W4NRF4C-U200



      4H-SiC, n-type, Research Grade, 100mm, 4° Off-Axis, 0.015-0.028 ohm-cm, Ultra Low MPD ≤1/cm2, 350um Thick, Double-Sided Polish Si Face CMP Epi Ready, Bare Substrate

      W4NPF4C-U200



      4H-SiC, n-type, Production Grade, 100mm, 4° Off-Axis, 0.015-0.028 ohm-cm, Ultra Low MPD ≤1/cm2, 350um Thick, Double-Sided Polish Si Face CMP Epi Ready, Bare Substrate

      W4NRF4C-B200

      4H-SiC, n-type, Research Grade, 100mm, 4° Off-Axis, 0.015-0.028 ohm-cm, Ultra Low MPD ≤1/cm2, Low BPD ≤1500/cm2, 350um Thick, Double Sided Polish Si Face CMP Epi Ready, Bare Substrate

      W4NPF4C-B200

      4H-SiC, n-type, Production Grade, 100mm, 4° Off-Axis, 0.015-0.028 ohm-cm, Ultra Low MPD ≤1/cm2, Low BPD ≤1500/cm2, 350um Thick, Double-Sided Polish Si Face CMP Epi Ready, Bare Substrate

      W4NRG4C-C1-V200

      4H-SiC, n-type, Research Grade, 150mm, 4° Off-Axis, 0.015-0.028 ohm-cm, Very Low MPD ≤5/cm2, 350um Thick w/ 47.5mm Flat, Double-Sided Polish Si Face CMP Epi Ready, Bare Substrate

      W4NPG4C-C1-V200

      4H-SiC, n-type, Production Grade, 150mm, 4° Off-Axis, 0.015-0.028 ohm-cm, Very Low MPD ≤5/cm2, 350um Thick w/ 47.5mm Flat, Double-Sided Polish Si Face CMP Epi Ready, Bare Substrate

      W4NRG4C-C1-U200

      4H-SiC, n-type, Research Grade, 150mm, 4° Off-Axis, 0.015-0.028 ohm-cm, Ultra Low MPD ≤1/cm2, 350um Thick w/ 47.5mm Flat, Double-Sided Polish Si Face CMP Epi Ready, Bare Substrate

      W4NPG4C-C1-U200

      4H-SiC, n-type, Production Grade, 150mm, 4° Off-Axis, 0.015-0.028 ohm-cm, Ultra Low MPD ≤1/cm2, 350um Thick w/ 47.5mm Flat, Double-Sided Polish Si Face CMP Epi Ready, Bare Substrate

      *C-faced polished wafers and 150mm LBPD substrates available upon request, lead times dependent on volume and requirements











      FLAT LENGTH

      Linear dimension of the flat measured with ANSI-certified digital calipers on a sample of one wafer per ingot
























      PRIMARY FLAT

      The flat of the longest length on the wafer, oriented such that the chord is parallel with a specified low-index crystal plane.

      PRIMARY FLAT ORIENTATION

      The primary flat is the {1010} plane with the flat face parallel to the <1120> direction.  Measured with Laue back reflection technique.

      SECONDARY FLAT

      A flat of shorter length than the primary flat, whose position with respect to the primary flat identifies the face of the wafer. Not applicable to 150mm wafers.

      SECONDARY FLAT ORIENTATION

      The secondary flat is the {11-20} plane with the flat face parallel to the <1010> direction.  Measured with Laue back reflection technique.




      橢圓: XXXXXX-XX




















      MARKING

      For silicon-face polished material, the carbon face of each individual wafer is laser-marked with OCR-compatible font, similar to definitions and characteristics in SEMI M12. For carbonface-polished material, the silicon face of each individual wafer is laser-marked.



      PRODUCT SPECIFICATIONS

      100mm Diameter n-type Substrates

      Diameter

      100.0 mm +0.0/-0.5 mm

      Thickness

      On-axis

      500 μm ± 25 μm

      Off-axis

      350.0 μm ± 25.0 μm

      Dopant

      Nitrogen

      Primary flat length

      32.5 mm ± 2.0 mm

      Secondary flat length

      18.0 mm ± 2.0 mm

      Surface orientation

      On-axis

      {0001} ± 0.25?

      Off-axis

      4.0? toward <1120> ± 0.5?

      Surface finish

      Back face optical polish, epi-face CMP

      Orthogonal misorientation

      ± 5.0?

      Primary flat orientation

      <1120> ± 5.0?

      Secondary flat orientation

      90.0? CW from primary ± 5.0?, silicon face up

      TTV

      ≤15 microns, full substrate

      Warp

      ≤45 microns, full substrate

      LTV (average, 1 cm2 site)

      ≤4 microns, full substrate

      Edge chips by diffuse lighting

      Production-grade

      none permitted ≥0.5mm width and depth

      Research-grade

      qty. 2 ≥1.0 mm width and depth



      150mm Diameter n-type Substrates

      Diameter

      150.0 mm ± 0.25 mm

      Thickness



      C1 specification

      350 μm ± 25 μm

      Dopant

      Nitrogen

      Primary flat length

      47.5 mm ± 1.5 mm

      Secondary flat length

      None

      Surface orientation

      4.0? toward <11-20> ± 0.5?

      Surface finish

      Back face optical polish, epi-face CMP

      Orthogonal misorientation

      ± 5.0?

      Primary flat orientation

      <11-20> ± 5?

      Secondary flat orientation

      N/A

      TTV

      ≤10 μm

      Warp

      Production-grade

      ≤40 μm

      Research-grade

      ≤60 μm

      LTV (average, 1 cm2 site)



      Production-grade

      ≤2 μm

      Research-grade

      ≤4 μm

      Edge chips by diffuse lighting

      Production-grade

      none permitted ≥0.5mm width and depth

      Research-grade

      qty. 2 ≥1.0 mm width and depth
