Keysight LCR 表 升級

利用行業標準的阻抗測量儀表，創造***成績。過去的半個多世紀中，惠普、安捷倫和是德科技憑借不斷的技術創新，為業界貢獻了***的阻抗分析產品。無論研發、生產、質控、進貨檢查或者其他應用，能夠幫助客戶成功完成任務是我們比較大的榮耀。從阻抗分析儀到***的測試附件，我們將一如既往地為您提供完整解決方案，滿足您的需求。選擇是德科技阻抗測量解決方案，實現業務成功。

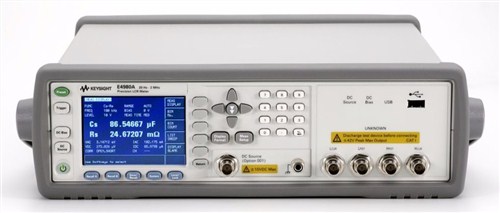

E4980A-001 E4980A-001 增強功率和直流偏置

Option E4980A-001 power and DC bias enhancement

0 to 20 Vrms / 100 mArms test signal

Built-in 40 V DC bias with 0.3 mV resolution

Built-in 10 V DC source

DC resistance, DC current, and DC voltage measurement capability

E4980A-1CM E4980A-1CM 添加機架安裝套件

What is the size (dimension) of rack mount kit (E4980A-1CM) ?

The kit consists of two different size pieces so that the E4980A fits to the 19 inch standard rack with this kit.

Bigger piece: Width 13.5 cm (5.3 inch), Height 9 cm (3.5 inch) approximately.

Smaller piece: Width 2.8 cm (1.1 inch), Height 9 cm (3.5 inch) approximately.

The total dimension of E4980A with rack mount kit is: Width 48.3 cm (19 inch), Height 9 cm (3.5 inch) approximately.

E4980A-002 E4980A-002 偏置電流接口

Option E4980A-002 bias current interface and 42841A bias current source

0.01 A to 20 A (with 42841A and 42842A)

0.02 A to 40 A (with 42841A x 2ea., 42842B and 42843A)

E4980AU-007 標準模型

E4980A-201 E4980A-201 處理器接口

Optional bias current, handler or scanner interfaces

Two of three interface options to choose from:

Bias current interface to connect a Keysight 42841A bias current source (Option E4980A-002)

Handler interface with 9 BIN outputs (Option E4980A-201)

Scanner interface with 128 multi-channel correction (Option E4980A-301)

E4980A-301 E4980A-301 掃描儀接口

Optional bias current, handler or scanner interfaces

Two of three interface options to choose from:

Bias current interface to connect a Keysight 42841A bias current source (Option E4980A-002)

Handler interface with 9 BIN outputs (Option E4980A-201)

Scanner interface with 128 multi-channel correction (Option E4980A-301)

E4980AL-201 機械手接口

機械手接口擁有 9 個料倉輸出，可以使用元器件機械手進行自動測試（選件 E4980AL-201）。

E4982A-004 工作標準儀

用于在處理器被測器件接觸面校準 4282A。它包含短路棒和 51 Ω 芯片電阻器。（SMD 尺寸：1.0 x 0.5 mm、1.6 x 0.8 mm、2.0 x 1.2mm、3.2 x 1.6 mm）

E4980AL-301 掃描儀接口

掃描儀接口可以用于精確地掃描/多通道測量，獲得 128 組校正數據（選件 E4980AL-301）

E4982A-020 測試夾具延長電纜儀

該選件適用于 2 米長的電纜。

E4982A-700 16195B Calibration Kit

This option provides the 16195B Calibration Kit which Includes OPEN, SHORT, 50 Ω LOAD, LOW-LOSS CAPACITOR standards. This is required for system calibration and tests.
